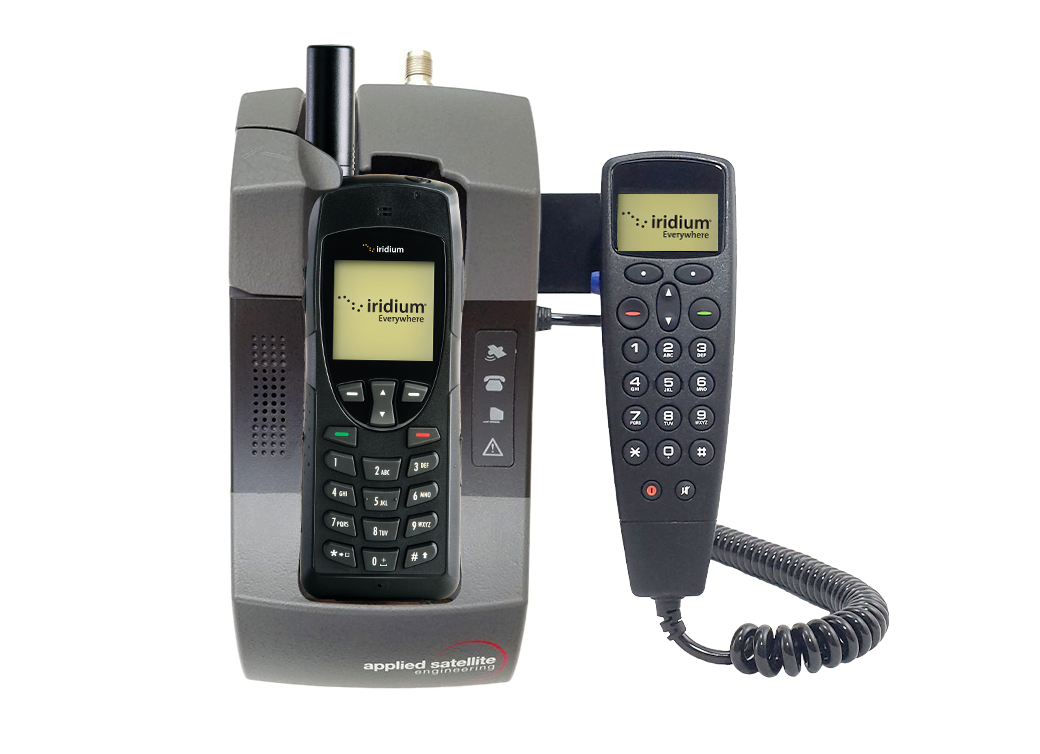

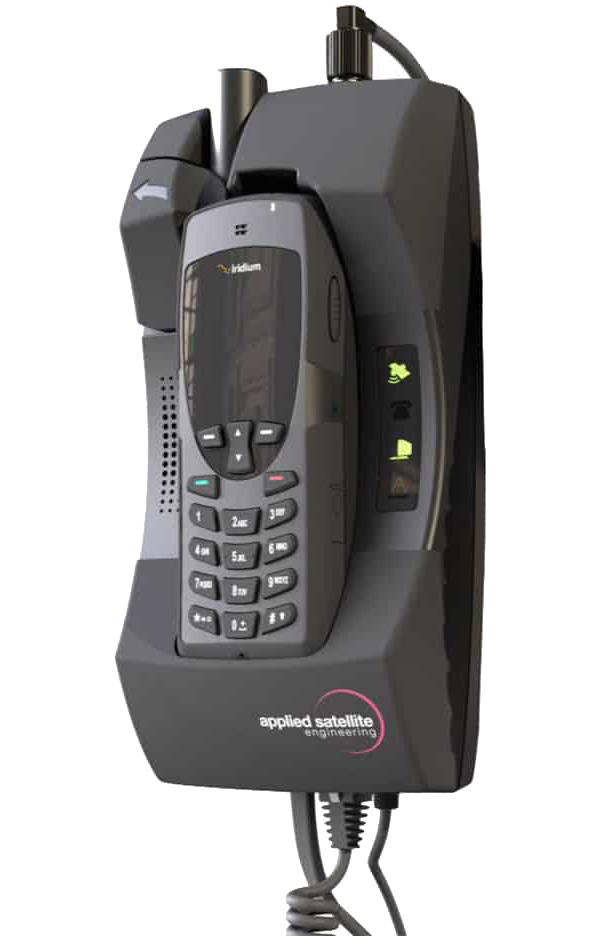

ASE Fixed Docking Station (Iridium 9555 – ASE-DK050)
Call for Price: 919-575-4600
ASE docking stations enhance and protect the Iridium 9555 satellite phone through intelligent software and hardware management. The DK050 provides local usage using the 9555 speakerphone or a corded intelligent handset (purchased separately).
*Phone not included.
Intelligent Handset not included – (Bundled PN: ASE-DK050-H)
Intelligent features include advanced tone management to provide the operator with system status and “smart dialing”, which eliminates confusion when country code variations are involved. Other intelligent hardware and software features include power on and power down management and USB connection for data transfers.
ASE docking stations also support live docking and undocking with bright illuminated status icons to show calling progress, satellites in view, and data transmissions. There is even a status icon to indicate when the Iridium 9555 is not properly docked. ASE docking stations provide a secure locking mechanism and protect the Iridium 9555, yet the phone can be removed almost instantly for situations that require “grab-and-go” scenarios.
Tech Specs & Features
Ergonomic body-lock provides secure handset protection and restraint
Simple operation with clear status indicators
Supports intelligent privacy handset
Text messaging and enhanced Smart Dialing
Electronics embedded in cradle for single-piece installation
Built-in charger to keep the 9555 battery charged and ready for use
Base-station ringer provides audible ringing to alert of incoming calls
Swivel mount hardware accessory (optional)
Secure Rotational Capture Mechanism
Bright, Large Diagnostic Indicators
Pass through USB Connector to 9555 Phone
Stable Firmware-Minimal (or no) Upgrades needed

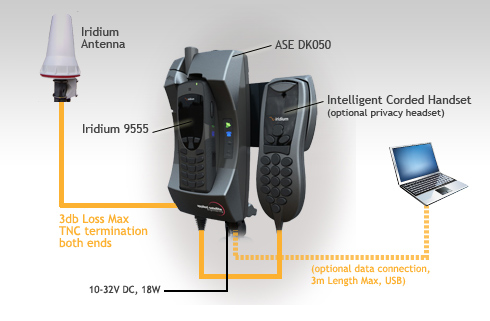

Use with Passive or Active Antennas (check cable distance)
Can be programmed for “Health” monitoring
L x W x H: 8.5 in. x 3.75 in. x 1.5 in.
Weight: 1.4 lb
Ports: USB, privacy handset, power
Power: 9 – 36 VDC, universal AC/DC adapter included
Exposure: Indoor per IEC60945
Features
Secure Rotational Capture Mechanism
Charges the Iridium 9555 to full at all times
Bright, Large Diagnostic Indicators
Pass-through USB Connector to 9555 Phone
Stable Firmware-Minimal (or no) Upgrades needed
Use with Passive or Active Antennas (check cable distance)
ASE Fixed Docking Station (Iridium 9555 – ASE-DK050)
Call for Price: 919-575-4600
*Phone not included.
Intelligent Handset not included – (Bundled PN: ASE-DK050-H)
Description
Intelligent features include advanced tone management to provide the operator with system status and “smart dialing”, which eliminates confusion when country code variations are involved. Other intelligent hardware and software features include power on and power down management and USB connection for data transfers.
ASE docking stations also support live docking and undocking with bright illuminated status icons to show calling progress, satellites in view, and data transmissions. There is even a status icon to indicate when the Iridium 9555 is not properly docked. ASE docking stations provide a secure locking mechanism and protect the Iridium 9555, yet the phone can be removed almost instantly for situations that require “grab-and-go” scenarios.
Tech Specs & Features
Features
Available in bundle with additional handset
