ASE Fixed Docking Station with analog phone connection (Iridium 9555 – ASE-DK075)
Call for Price: 919-575-4600
ASE’s entire line of Iridium docking stations overcomes the failure of satellite phones—Their inability to work inside a building, a vehicle, or a vessel.

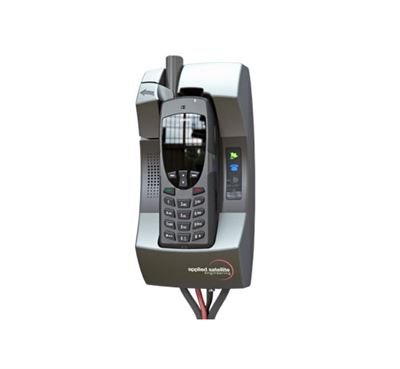

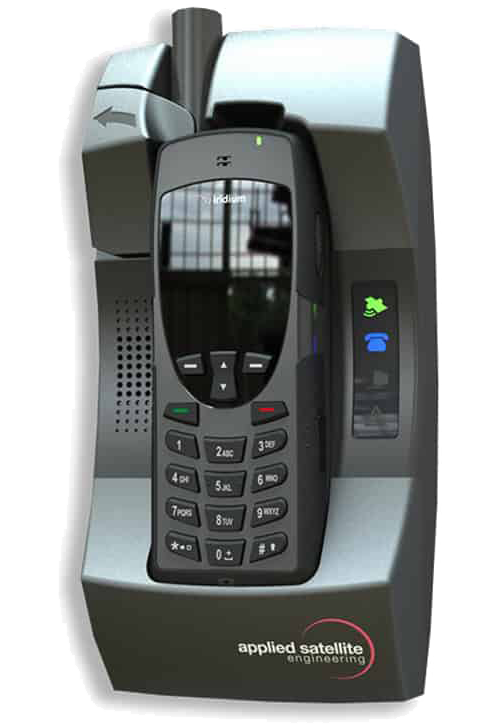

The ASE DK075 Docking Station is a refined docking station for the Iridium 9555 Phone/Handset. Elegant in its appearance it is often chosen for companies’ executive’s offices or the bridge on a sophisticated yacht but finds its way easily installed in a remote control room. The Docking Station is singular and powerful in its use and function. No-to-low maintenance, the DK075 works immediately out of the box–no immediate firmware upgrades necessary, keeping the operating costs to a minimum. It is most likely that the need to reinstall the stable firmware of the Docking Station will never occur.
The DK075 performs extremely well at bringing the Iridium network inside your building and connecting to any RJ11 analog (analog) phone. The Iridium 9555 sits comfortably and neatly into the DK075 connecting to the gold antenna connector then routed to a TNC connector for your coax cable to make its way to the antenna. There is a very positive rotating lock that mechanically captures the 9555 Phone securely and provides robust electrical connections to the phone’s base connector. This connection keeps the Iridium 9555 fully charged for use anytime inside the building, or in those instances where the staff is leaving the building to grab the phone out of the docking station and remain connected anywhere on earth.
For the more technically curious, the USB connector is “Pass-through” allowing you to externally connect to a “back-up” email service or other specialized applications without any hindrances. See our antenna offerings of passive antennas, or powered (active) antennas that pair perfectly with the DK075.
Features
Connection to any RJ11 Analog Phone
Secure Rotational Capture Mechanism
Charges the Iridium 9555 to full at all times
Bright, Large Diagnostic Indicators
Pass-through USB Connector to 9555 Phone
Stable Firmware-Minimal (or no) Upgrades needed
Use with Passive or Active Antennas (check cable distance)
Can be programmed for “Health” monitoring
RJ11 Connect (ASE-DK075 only)
-Connects to an analog phone (single or PBX) including multihandset wireless phones. Use of a cordless phone with expandable handsets can provide up to eight units within a two-mile range (unobstructed) from the base station.
Handset Connect
-Corded Intelligent Handset (optional) offers a convenient wall-mount privacy Handset with audio enhancement circuitry to provide excellent voice quality.
USBConnect
-USB port for data connections including Internet connection with Direct Internet 2.0.
Built-In Charger
-Keeps handset fully charged for immediate use when un-docked.
Real-time System Status Indicators
-Large Icons allow status viewing from 25′.
Smart Dialing
-The Docking Station knows the correct format for the country that is being dialed and places the call once the number is entered. Smart Dialing eliminates the superfluous “00” IDD code (no more international dialing sequence).
Simple Operation
-The Docking Station combines clear LED status lights with the Iridium handset’s graphical display for setup, troubleshooting, programming, and operation.
Base Station Ringer
-Audible ringing to alert of incoming calls.
Versatile Power Input
-9- 36 VDC input range supports power systems on most vehicles and vessels. An included universal power adapter allows 100 – 240VAC, 47 – 63 Hz operation. A DC Vehicle adapter is also included.
Antenna Options
-Can be used with many antennas, including fixed-mast, mobile fixed-mount, and mobile magnetic-mount models.
ASE Fixed Docking Station with analog phone connection (Iridium 9555 – ASE-DK075)
Call for Price: 919-575-4600
Description
The DK075 performs extremely well at bringing the Iridium network inside your building and connecting to any RJ11 analog (analog) phone. The Iridium 9555 sits comfortably and neatly into the DK075 connecting to the gold antenna connector then routed to a TNC connector for your coax cable to make its way to the antenna. There is a very positive rotating lock that mechanically captures the 9555 Phone securely and provides robust electrical connections to the phone’s base connector. This connection keeps the Iridium 9555 fully charged for use anytime inside the building, or in those instances where the staff is leaving the building to grab the phone out of the docking station and remain connected anywhere on earth.
For the more technically curious, the USB connector is “Pass-through” allowing you to externally connect to a “back-up” email service or other specialized applications without any hindrances. See our antenna offerings of passive antennas, or powered (active) antennas that pair perfectly with the DK075.
Features
RJ11 Connect (ASE-DK075 only)
-Connects to an analog phone (single or PBX) including multihandset wireless phones. Use of a cordless phone with expandable handsets can provide up to eight units within a two-mile range (unobstructed) from the base station.
Handset Connect
-Corded Intelligent Handset (optional) offers a convenient wall-mount privacy Handset with audio enhancement circuitry to provide excellent voice quality.
USBConnect
-USB port for data connections including Internet connection with Direct Internet 2.0.
Built-In Charger
-Keeps handset fully charged for immediate use when un-docked.
Real-time System Status Indicators
-Large Icons allow status viewing from 25′.
Smart Dialing
-The Docking Station knows the correct format for the country that is being dialed and places the call once the number is entered. Smart Dialing eliminates the superfluous “00” IDD code (no more international dialing sequence).
Simple Operation
-The Docking Station combines clear LED status lights with the Iridium handset’s graphical display for setup, troubleshooting, programming, and operation.
Base Station Ringer
-Audible ringing to alert of incoming calls.
Versatile Power Input
-9- 36 VDC input range supports power systems on most vehicles and vessels. An included universal power adapter allows 100 – 240VAC, 47 – 63 Hz operation. A DC Vehicle adapter is also included.
Antenna Options
-Can be used with many antennas, including fixed-mast, mobile fixed-mount, and mobile magnetic-mount models.
