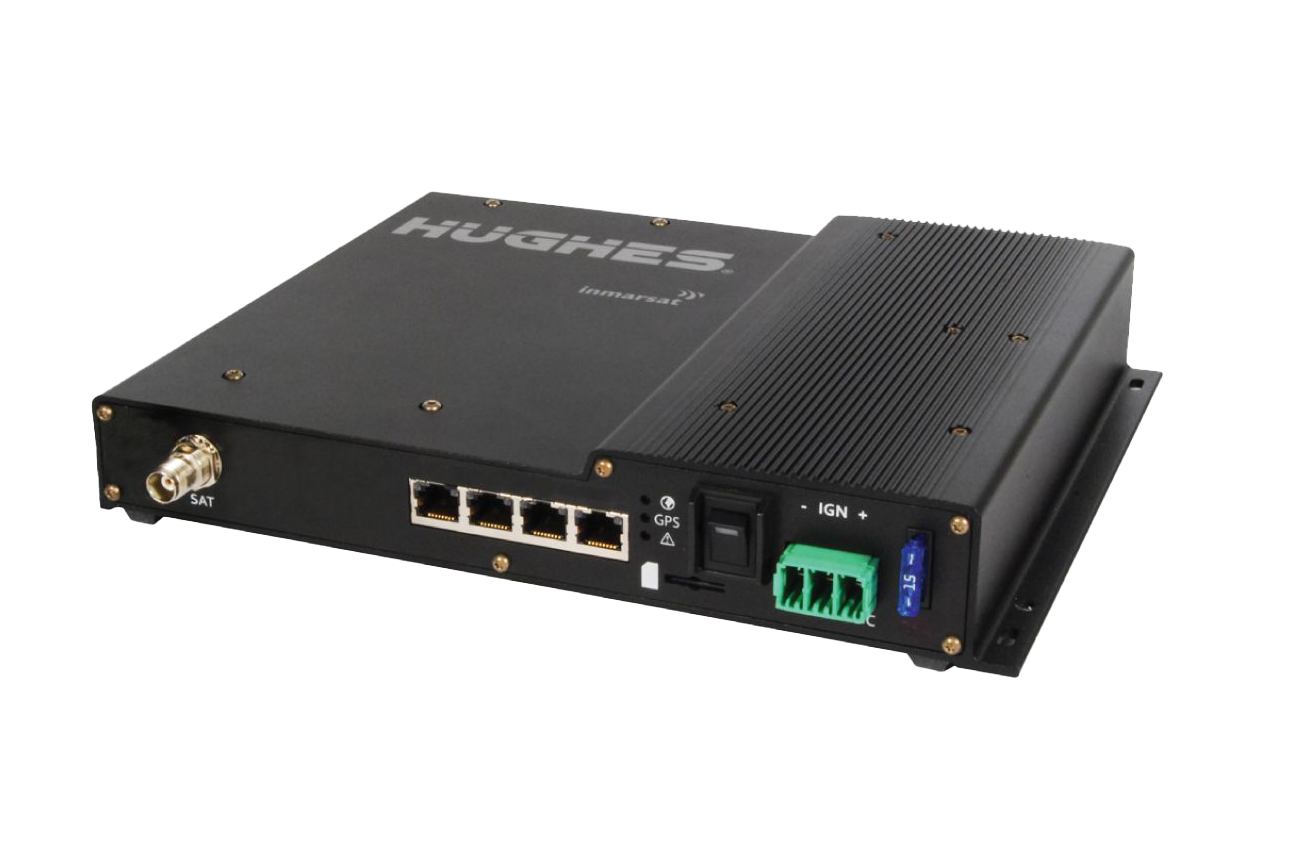

The Hughes 9450 is a broadband satellite IP terminal and WLAN (Wi-Fi Hot Spot) access point. It is the world’s smallest mobile BGAN terminal allowing users to connect at IP broadband speeds of up to 464 kbps while on-the-move.
Every version of the Hughes 9450 (there are 16 versions, spread across two antenna sizes and different mounting kit options) delivers auto-tracking satellite internet; broadband whether you’re stationary or moving.
The Hughes 9450 terminal is fully approved for operation on Inmarsat’s Broadband Global Area Network (BGAN) satellite service and provides high-performance, on-the-move connectivity for the most demanding environments. Popular, budget-friendly, and highly competitive global mobile terminal, ideal for Government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications. Reliably and efficiently collaborate with various agencies and headquarters staff using video, voice/VoIP and data simultaneously. The Hughes 9450 terminal is IP-based and offers selectable, dedicated Quality of Service (QoS) levels. Simple, quick, and flexible options are available for installation on any vehicle. The antenna may be permanently mounted for fleetstyle installation or the optional magnetic roof mount can be used for rapid installation and removal. The antenna includes a single, RF cable connection.
Class 10:
Customers can connect at broadband speeds of up to 492 kbps standard IP using the reliable Hughes 9450-C10. The Hughes 9450-C10 includes a built-in wireless Wi-Fi access point, which can be enabled, if required. The Hughes 9450-C10 terminal supports 64 kbps ISDN data, 3.1 KHz audio for secure calls, and 4k ISDN voice for standard voice calls. The Hughes 9450-C10 terminal has four Ethernet ports with Power over Ethernet (PoE) that allow the user to connect multiple devices. The terminal supports analog and ISDN circuit-switched voice calls, along with fax and 64 kbps ISDN data.
Class 11:
Smallest Class11 BGAN tracking antenna available. Customers can connect at IP broadband speeds of up to 464 kbps while on-the-move using the world’s smallest C11 mobile BGAN terminal—the Hughes 9450-C11. Select Hughes 9450-C11 models include a built-in Wi-Fi access point (see below table for details).

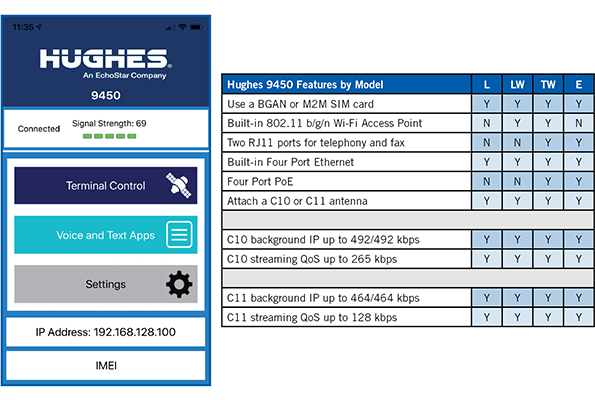

Key Features
9450E
9450L
9450LW
Use a BGAN or M2M SIM card
Y
Y
Y
Built-in Wi-Fi
N
N
Y
RJ11 for Voice and Fax
Y
N
N
Built-in Ethernet
Y
Y
Y
PoE
Y
N
N
Attach a C10 or C11 antenna
Y
Y
Y
C10 background IP up to 492/492Kbps
Y
Y
Y
C10 streaming QoS up to 265Kbps above 45deg
Y
Y
Y
C11 background IP up to 460/460Kbps
Y
Y
Y
C11 streaming QoS up to 128Kbps
Y
Y
Y
Services
Up to 492 kbps shared standard IP data rate and 256 kbps streaming IP
Selectable Quality of Service (32 kbps, 64 kbps, 128 kbps or 256 kbps*)
* 3.1 KHz audio and 64 kbps ISDN data are network limited to look angles above 20 degrees and 256 kbps streaming is network limited to look angles above 45 degrees.
Package Includes
C11 Mobile Terminal Kit (9450TW, 9450E, 9450L, 9450LW) contents: Hughes 9450 Mobile Terminal (9450TW, 9450E, 9450L, 9450LW), Power Cable, 10 m Radio Frequency Cable, Class 11 Tracking Antenna
C10 Mobile Terminal Kit (9450TW, 9450E, 9450L, 9450LW) contents: Hughes 9450 Mobile Terminal (9450TW, 9450E, 9450L, 9450LW), Power Cable, 10 m Radio Frequency Cable, Set of 3 Magnetic Mounts, Class 10 Tracking Antenna
Customers can connect at IP broadband speeds of up to 464 kbps while on the move using the world’s smallest C11 mobile BGAN terminal—the Hughes 9450-C11. Four different versions of the 9450 are available depending on the customer’s interface requirements.
9450L-C11 Terminal Kit (Part Number: 3500497-0015) Ethernet (No PoE)
9450LW-C11 Terminal Kit (Part Number: 3500497-0019) Ethernet (No PoE) and Wi-Fi
Customers can connect with IP broadband speeds of up to 942 kbps while on the move using the reliable 9450-C10. Four different versions of the 9450 are available depending on the customer’s interface requirements.
Hughes 9450
Call for Price: 919-575-4600

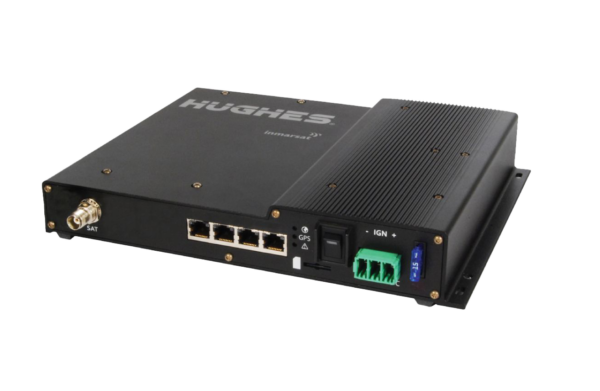

The Hughes 9450 is a broadband satellite IP terminal and WLAN (Wi-Fi Hot Spot) access point. It is the world’s smallest mobile BGAN terminal allowing users to connect at IP broadband speeds of up to 464 kbps while on-the-move.
Description
Every version of the Hughes 9450 (there are 16 versions, spread across two antenna sizes and different mounting kit options) delivers auto-tracking satellite internet; broadband whether you’re stationary or moving.
The Hughes 9450 terminal is fully approved for operation on Inmarsat’s Broadband Global Area Network (BGAN) satellite service and provides high-performance, on-the-move connectivity for the most demanding environments. Popular, budget-friendly, and highly competitive global mobile terminal, ideal for Government, first responders, public safety, mobile healthcare, and remote mobile fleet personnel in industries such as utility, oil and gas, forestry, cable, and telecommunications. Reliably and efficiently collaborate with various agencies and headquarters staff using video, voice/VoIP and data simultaneously. The Hughes 9450 terminal is IP-based and offers selectable, dedicated Quality of Service (QoS) levels. Simple, quick, and flexible options are available for installation on any vehicle. The antenna may be permanently mounted for fleetstyle installation or the optional magnetic roof mount can be used for rapid installation and removal. The antenna includes a single, RF cable connection.
Class 10:
Customers can connect at broadband speeds of up to 492 kbps standard IP using the reliable Hughes 9450-C10. The Hughes 9450-C10 includes a built-in wireless Wi-Fi access point, which can be enabled, if required. The Hughes 9450-C10 terminal supports 64 kbps ISDN data, 3.1 KHz audio for secure calls, and 4k ISDN voice for standard voice calls. The Hughes 9450-C10 terminal has four Ethernet ports with Power over Ethernet (PoE) that allow the user to connect multiple devices. The terminal supports analog and ISDN circuit-switched voice calls, along with fax and 64 kbps ISDN data.
Class 11:
Smallest Class11 BGAN tracking antenna available. Customers can connect at IP broadband speeds of up to 464 kbps while on-the-move using the world’s smallest C11 mobile BGAN terminal—the Hughes 9450-C11. Select Hughes 9450-C11 models include a built-in Wi-Fi access point (see below table for details).
Key Features
Services
* 3.1 KHz audio and 64 kbps ISDN data are network limited to look angles above 20 degrees and 256 kbps streaming is network limited to look angles above 45 degrees.
Package Includes
C11 Mobile Terminal Kit (9450TW, 9450E, 9450L, 9450LW) contents: Hughes 9450 Mobile Terminal (9450TW, 9450E, 9450L, 9450LW), Power Cable, 10 m Radio Frequency Cable, Class 11 Tracking Antenna
C10 Mobile Terminal Kit (9450TW, 9450E, 9450L, 9450LW) contents: Hughes 9450 Mobile Terminal (9450TW, 9450E, 9450L, 9450LW), Power Cable, 10 m Radio Frequency Cable, Set of 3 Magnetic Mounts, Class 10 Tracking Antenna

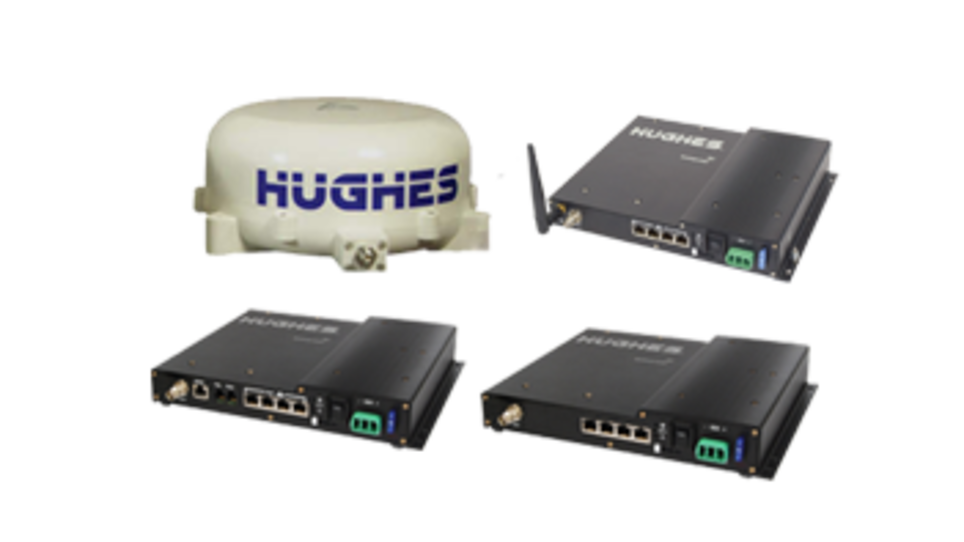

Customers can connect at IP broadband speeds of up to 464 kbps while on the move using the world’s smallest C11 mobile BGAN terminal—the Hughes 9450-C11. Four different versions of the 9450 are available depending on the customer’s interface requirements.
9450TW-C11 Terminal Kit (Part Number: 3500497-0021) PoE Ethernet, Wi-Fi, RJ11, and Fax
9450E-C11 Terminal Kit (Part Number: 3500497-0008) PoE Ethernet, RJ11, Fax, and ISDN
9450L-C11 Terminal Kit (Part Number: 3500497-0015) Ethernet (No PoE)
9450LW-C11 Terminal Kit (Part Number: 3500497-0019) Ethernet (No PoE) and Wi-Fi

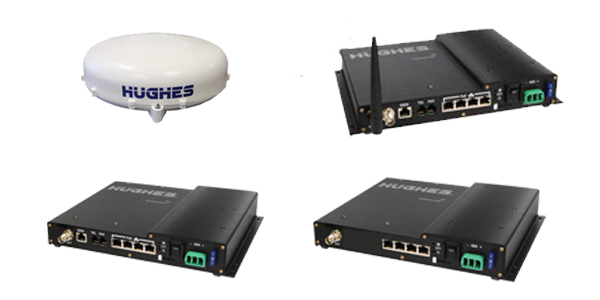

Customers can connect with IP broadband speeds of up to 942 kbps while on the move using the reliable 9450-C10. Four different versions of the 9450 are available depending on the customer’s interface requirements.
9450TW-C10 Terminal Kit (Part Number: 3500497-0020) PoE Ethernet, Wi-Fi, RJ11, and Fax

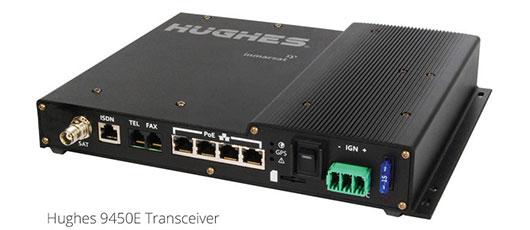

9450E-C10 Terminal Kit (Part Number: 3500497-0012) PoE Ethernet, RJ11, Fax, and ISDN, also has four (4) Ethernet ports with Power over Ethernet.
9450L-C10 Terminal Kit (Part Number: 3500497-0014) Ethernet (No PoE)
9450LW-C10 Terminal Kit (Part Number: 3500497-0018) Ethernet (No PoE) and Wi-Fi
