The Hughes 9502 IP satellite terminal provides reliable connectivity over the Inmarsat Broadband Global Area Network (BGAN) for IP SCADA and machine-to-machine (M2M) applications. The Hughes terminal delivers affordable, global, end-to-end IP data connectivity enabling applications in industry sectors such as environmental monitoring, SmartGrid, pipeline monitoring, compressor monitoring, well site automation, video surveillance, and out-of-band management to primary site communications.
-Hughes 9502 utilizes BGAN or M2M SIM cards
-Integrated IP Watchdog to ensure “always-on” network connectivity. No manual intervention required to recover from an outage
-Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
-Remote control via SMS—remote management platform for command and control to the terminal using SMS, including configuration, debugging, and access to Web interface
-Ultra-low power consumption ◦Transmit: < 20W
-Narrow beam w/o transmit: 3W
-Idle (regional beam): 1W
-Off (wake on packet): < 10mW (@ 12Vdc)
-Off (wake on packet): < 30mW (@ 24Vdc)
-Off (GPIO control): 0 W
-Relay mode passes WAN IP address to the connected RTU
-Supports Port Forwarding
-Security enhancements with extended layers of embedded security options
-Basic installation; no PC required
-Outdoor unit (ODU) can be pole mounted
-Indoor unit (IDU) is housed inside building or the remote terminal unit (RTU)
-Built-in GPS receiver
Interfaces
-Ethernet connection (RJ45)
-USB–Type B for connection to configuration PC
-RS-232 (DB9) to external NMEA 0183-based GNSS device (e.g., GLONASS receiver)
-TNC connection on the IDU to the external antenna

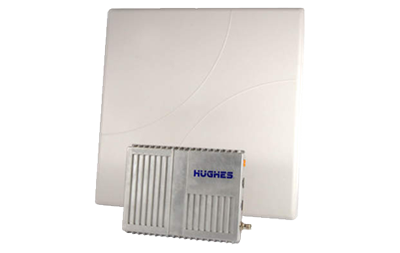

Hughes 9502 M2M Terminal
Call for Price: 919-575-4600
The Hughes 9502 IP satellite terminal provides reliable connectivity over the Inmarsat Broadband Global Area Network (BGAN) for IP SCADA and machine-to-machine (M2M) applications. The Hughes terminal delivers affordable, global, end-to-end IP data connectivity enabling applications in industry sectors such as environmental monitoring, SmartGrid, pipeline monitoring, compressor monitoring, well site automation, video surveillance, and out-of-band management to primary site communications.
Description
-Hughes 9502 utilizes BGAN or M2M SIM cards
-Integrated IP Watchdog to ensure “always-on” network connectivity. No manual intervention required to recover from an outage
-Auto-on/auto-context activation automatically restores power and PDP connection to itself following loss of power and/or IP connection
-Remote control via SMS—remote management platform for command and control to the terminal using SMS, including configuration, debugging, and access to Web interface
-Ultra-low power consumption ◦Transmit: < 20W
-Narrow beam w/o transmit: 3W
-Idle (regional beam): 1W
-Off (wake on packet): < 10mW (@ 12Vdc)
-Off (wake on packet): < 30mW (@ 24Vdc)
-Off (GPIO control): 0 W
-Relay mode passes WAN IP address to the connected RTU
-Supports Port Forwarding
-Security enhancements with extended layers of embedded security options
-Basic installation; no PC required
-Outdoor unit (ODU) can be pole mounted
-Indoor unit (IDU) is housed inside building or the remote terminal unit (RTU)
-Built-in GPS receiver
Interfaces
-Ethernet connection (RJ45)
-USB–Type B for connection to configuration PC
-RS-232 (DB9) to external NMEA 0183-based GNSS device (e.g., GLONASS receiver)
-TNC connection on the IDU to the external antenna
