The MCG-101 was designed to provide the most powerful and versatile Iridium communications system to offices, remote locations, aircraft, and maritime. The system provides an intelligent solution for Smartphones, iOS or Android to operate as a Satellite telephone, Internet gateway, intelligent GPS device, send/receive SMS, and attach to other devices through RS232 and ethernet. Overall, the MCG-101 is the ultimate Iridium telecommunications system available to fulfill the needs and demands of today’s business, marine, and military needs.
Using Advanced Features
Tracking
SBD to GSatTrack
SMS to GSatTrack
SMS to Email
Firewall Settings
Disabling Built In Firewall
Network>Firewall>Firewall Rules – The firewall on the aurora is setup to block all traffic to the internet except for XGate and XWeb, so it must be disabled if you want unrestricted access to the internet. Check the rules named “ALL” and “DNS” (they are unchecked by default) and click “Save and Apply”. This will enable all traffic to pass through the firewall.
Iridium Auto Connect
Setup Iridium To Connect On Any Traffic
Follow the instructions above to disable the built in firewall, then proceed with the following steps
Network>PPP>Settings>PPP – Enable PPP to monitor traffic and connect on demand by enabling the “on demand” feature. PPP will connect as soon as the unit boots, and then it will disconnect if there is no traffic for 60 seconds (configurable). It will reconnect when it sees traffic.
AT Command Interface to Iridium
If you have an application where you would like to send SBD, SMS, or other AT commands directly on the Iridium modem for your application, you can do so by connecting to the Ethernet port or via WiFi and creating a TCP socket to the unit which will be translated to the serial port of the unit. You cannot use this interface for dialup data because there is no flow control for packets from your application to the Iridium modem on this port. RUDICS applications could possibly operate over this port on a case by case basis because of the lack of flow control.

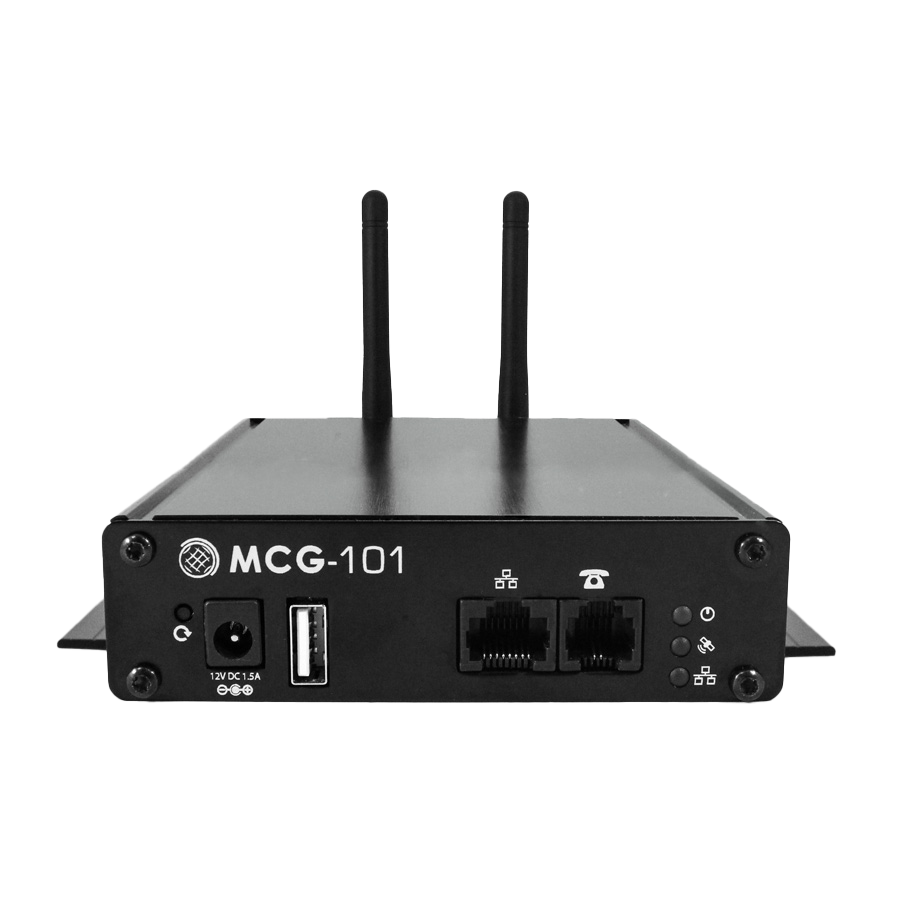

Intelligent Satellite Terminal MCG-101
Call for Price: 919-575-4600
The MCG-101 was designed to provide the most powerful and versatile Iridium communications system to offices, remote locations, aircraft, and maritime. The system provides an intelligent solution for Smartphones, iOS or Android to operate as a Satellite telephone, Internet gateway, intelligent GPS device, send/receive SMS, and attach to other devices through RS232 and ethernet. Overall, the MCG-101 is the ultimate Iridium telecommunications system available to fulfill the needs and demands of today’s business, marine, and military needs.
Description
Using Basic Features
Phone Calls
Wifi
Using Advanced Features
Tracking
SBD to GSatTrack
SMS to GSatTrack
SMS to Email
Firewall Settings
Disabling Built In Firewall
Network>Firewall>Firewall Rules – The firewall on the aurora is setup to block all traffic to the internet except for XGate and XWeb, so it must be disabled if you want unrestricted access to the internet. Check the rules named “ALL” and “DNS” (they are unchecked by default) and click “Save and Apply”. This will enable all traffic to pass through the firewall.
Iridium Auto Connect
Setup Iridium To Connect On Any Traffic
Follow the instructions above to disable the built in firewall, then proceed with the following steps
Network>PPP>Settings>PPP – Enable PPP to monitor traffic and connect on demand by enabling the “on demand” feature. PPP will connect as soon as the unit boots, and then it will disconnect if there is no traffic for 60 seconds (configurable). It will reconnect when it sees traffic.
AT Command Interface to Iridium
If you have an application where you would like to send SBD, SMS, or other AT commands directly on the Iridium modem for your application, you can do so by connecting to the Ethernet port or via WiFi and creating a TCP socket to the unit which will be translated to the serial port of the unit. You cannot use this interface for dialup data because there is no flow control for packets from your application to the Iridium modem on this port. RUDICS applications could possibly operate over this port on a case by case basis because of the lack of flow control.
