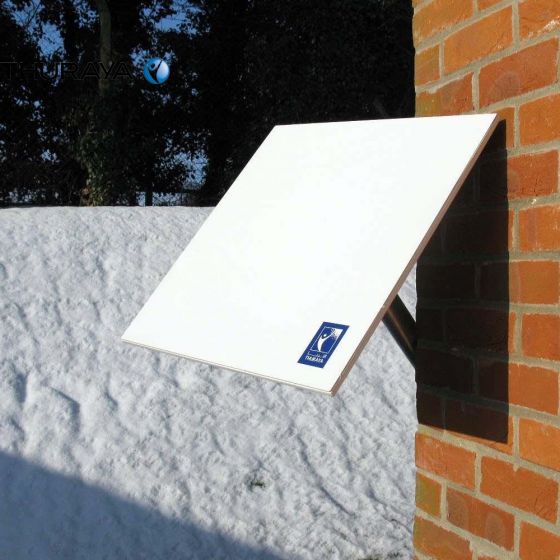

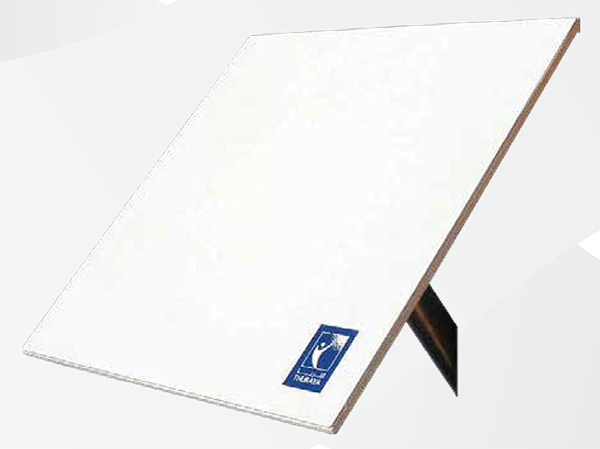

Thuraya IP Modem External Antenna Model 1426 – Fixed Application w/10m Cable
his is the smallest fixed panel antenna that can be used to operate the ThurayaIP unit at its maximum data rate.
This antenna enables external mounting and the use of long cables to the ThurayaIP terminal. This antenna enables the use of the highest streaming IP rates of ThurayaIP, and improves performance for all other models
High Gain, Directional remote antenna, for fixed installations, for the Thuraya IP
Antenna Housing includes integrated, active GPS.
Provides reliable connectivity through your Thuraya IP, thus enhancing the performance of Standard IP and Streaming IP.
Features
Smallest panel antenna for Thuraya IP
Powerful RF performance to unlock the full potential of Thuraya IP
Requires Directional pointing towards satellite
Cable length up to 10m
IP Data Service – Antenna Performance
Background IP: Up to 444 Kbps over a single channel
Streaming IP Without External Antenna: 16, 32, 64, 128, 256 Kbps
Streaming IP With External Antenna: 16, 32, 64, 128, 256, 384 Kbps
Technical Specifications
Cables
Sat port cable: 10.0m(32.8ft)
GPS port cable: 10.0m(32.8ft)
Antenna Connectors
SAT Port: N-Female connector
GPS Port: TNC-Female connector
Thuraya IP Modem External Antenna – Fixed
Call for Price: 919-575-4600
This is the smallest FIXED panel antenna that can be used to operate the ThurayaIP unit at its maximum data rate.
Description
Thuraya IP Modem External Antenna Model 1426 – Fixed Application w/10m Cable
his is the smallest fixed panel antenna that can be used to operate the ThurayaIP unit at its maximum data rate.
This antenna enables external mounting and the use of long cables to the ThurayaIP terminal.
This antenna enables the use of the highest streaming IP rates of ThurayaIP, and improves performance for all other models
High Gain, Directional remote antenna, for fixed installations, for the Thuraya IP
Antenna Housing includes integrated, active GPS.
Provides reliable connectivity through your Thuraya IP, thus enhancing the performance of Standard IP and Streaming IP.
Features
Smallest panel antenna for Thuraya IP
Powerful RF performance to unlock the full potential of Thuraya IP
Requires Directional pointing towards satellite
Cable length up to 10m
IP Data Service – Antenna Performance
Background IP: Up to 444 Kbps over a single channel
Streaming IP Without External Antenna: 16, 32, 64, 128, 256 Kbps
Streaming IP With External Antenna: 16, 32, 64, 128, 256, 384 Kbps
Technical Specifications
Cables
Sat port cable: 10.0m(32.8ft)
GPS port cable: 10.0m(32.8ft)
Antenna Connectors
SAT Port: N-Female connector
GPS Port: TNC-Female connector
Manufacturer model: FPA17-1.6L/1426/THU
Learn more about Thuraya IP
